powerMir : High Power Quantum Cascade Lasers (QCL)

From your lab to series productions, we supply ITAR-free high powered QCL laser systems customized for your projects

Quantum cascade lasers (QCLs) are intersubband semiconductor lasers emitting around a center wavelength ranging from the mid-infrared.

The QCLs proposed by mirSense are high-powered diodes (typically watt-level) emitting in the main transmission bands of the atmosphere (4.0µm, 4.6µm, 4.8µm, 9.x µm). They are Fabry-Perot laser sources operating in quasi CW regime (pulsed operation down to few tens of nanoseconds and high frequency above MHz) at room temperature. The high average power and wall-plug efficiency of this product is perfectly suited for counter-measure and other defense applications.

“ The roadmap of the mirSense company is to remain the leader by reaching high powers in the wavelengths of 4µm, 4,6µm, 9µm.” says Dr. Gregory Maisons, phd, head of laser R&D at mirSense.
“ The roadmap of the mirSense company is to remain the leader by reaching high powers in the wavelengths of 4µm, 4,6µm, 9µm.” says Dr. Gregory Maisons, phd, head of laser R&D at mirSense.

The QCLs from mirSense are proudly manufactured in first-class clean rooms in the heart of the French optics valley on the “Saclay Plateau” near Paris. mirSense focuses on serving industrial customers that require a high level of laser repeatability to ensure good batch-to-batch quality for series-productions. Customers will especially find with mirSense a very high beam quality.

2018_CABMIN_142_M_001_022
Mrs Florence Parly, minister for the  armed forces,
exhibits a mirSense QCL for DIRCM applications
©Véronique Besnard / Ministère des Armées

mirSense offers a full range of ITAR-free products from chip on submount manufacturing to full turnkey systems. For OEM system integrators, mirSense manufactures a packaged diode plugged to a top-notch PCB driver that includes laser control, thermal management and security and safety. This packaged diode is the “POEM” system (POEM stands for PowerMir OEM system).

The beam of our high-power lasers is a gaussian beam
The beam of our high-power lasers is a Gaussian beam


Turnkey system



mirSense turnkey system_LD
  • Plug-and-play system perfect to use inside a lab

  • Stand alone system including: laser head, driver, heat exchanger

  • External TTL for synchronization

  • Redlaser beam to facilitate alignment

  • User-friendly PC software allows users to:

    • Turn ON/OFF the laser

    • Easily change the operating mode (power, modulation)

For lab experiments, we offer a plug-and-play easy to use turnkey system that includes laser heads, a driver and the cooling mechanism as well as a user-friendly PC software.

In order to accompany you in your future projects, the mirSense turnkey plateform is very modular, able to control simultaneously 2 different laser heads (with different or identical wavelengths), you can have as many heads as you want a choose the two you want to operate!

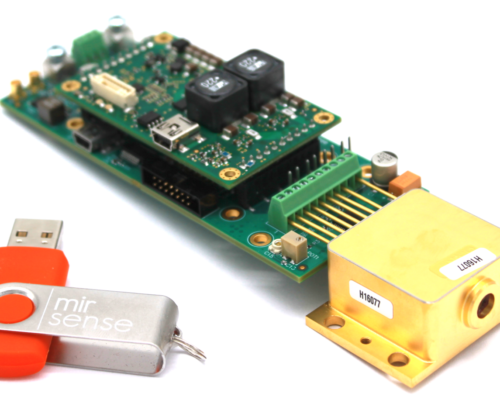

POEM system (HHL packaged laser + PCB electronics)



mirSense POEM system
  • Compact stand-alone OEM product for system integration

  • Powerful FPGA-based architecture

  • MODBUS communication for system integration and user-friendly PC software for configuration and tests

  • External TTL for synchronization

  • Cost effective for series-productions



For system integration, our standard sub-system is a packaged laser supplied with its electronics driving board: the POEM system. When efficiency rhymes with simplicity, we have developed as well a top-notch PCB board to control the lasers. This board embedded unprecedent functionalities such as laser driver (Down to 20ns pulse duration and high frequency, up to 50MHz, QCW from 0 to 100% duty cycle), complex programable modulation schemes and of course full laser protection. Thanks to those extended capacities, each electronics is factory set to optimize the laser performances depending on your application needs.

The PowerMir OEM system (POEM) is meant for customers who wish to integrate a QCL high-powered source inside their system (for example a DIRCM system). Each POEM is a compact light-weight and robust system made up of a packaged QCL laser plugged to a driving electronics board. Each POEM delivers the minimum average optical power required for a set of different temperature levels of the base plate of the laser. The onboard firmware protects the laser from burning through temperature management of the TEC element. The customer can communicate with the board through MODBUS commands and a TTL trigger allows the customer to modulate each board with confidentiality.  Several POEM systems can be combined to combine and increase the total optical output power.


Packaged chips



mirSense HHL_LD
  • Standard high heat loads package (9-pins HHL) or custom package on request

  • Integrated Peltier TEC cooler

  • Integrated collimating lens (High beam quality, M²<1.5)

  • Possibility of chips on submount delivery

For clients who wish to purchase only the laser without the driving electronics, all of our laser wavelengths are available in a packaged version alone. Our standard offer is in a HHL package including the thermal regulation and a collimating lens. We are used to develop and supply custom packages as well.

For specific projects, mirSense can also supply QCL chips on submounts on demand.

20200109_195258(0)

Consultant on your projects: though extended client experience, mirSense has gathered a unique expertise in accompanying our clients in their developments. We are able to provide technical support and advanced consulting for your projects using QCLs. Our local distributors can answer your everyday questions and for deeper support a team of highly experienced PhDs is located in our Headquarters near Paris in France.



PowerMir turnkey solution



Plug-and-play high Power QCL source for development purpose

PowerMir turnkey solution is high power pulsed Quantum Cascade Laser based on proprietary technology, emitting in Mid-Infra-Red with its electronic driver. The system spec code is: PWXXXYYYYHTKZ, X.XX is the wavelength in micron, YYYY the power in mW, Z being 1 or 2, the number of laser heads, extension -W or -A specify water- or air-cooled solution). It offers plug and play solution in PC for quick and easy development in lab.

ITAR free MirSense technology exhibits outstanding performances in term of power and wall plug efficiency. This high-performance QCL assembly takes full advantage of MirSense’s state of the art technologies.

mirSense turnkey system_LD

Optical features

Maximum Average Optical Power

Above 1W @4.0µm, 1W @4.6µm,

1.5W @4.8µm, 0.3W @9.Xµm.

Mode of operation

Quasi-CW, high duty cycled pulsed

Central wavelength

4.0, 4.6, 4.8, 9.Xµm +/- 0.15 µm

Pulse frequency

> 500 kHz

Divergence

Horizontal < 8 mrad (typically 6mrad)

Vertical < 6 mrad (typically 4mrad)

Beam quality

TM00 Gaussian beam, M²<1.5

Output beam dimension (window output)

2 mm x 3 mm

Polarization

Linear vertically polarized

Turnkey system features

Main features

Laser power stabilization with varying external conditions, Laser driver (ON/OFF), Laser temperature and TEC control, frequency modulation, duty cycle, external TTL.

Protections

Laser protection from misuse and environmental conditions degradation.

Physical interface

USB interface for PC connexion (USB cable supplied)

TTL trig IN connector for TTL external signal

Software

Windows PC

Input power

24V DC

Dimension

laser head: 20cm x 15cm x 6cm / driver: 25cm*15cm*6cm

Weight

925 g

Operational temperature

-30 °C to +40°C (this working environmental temperature must in any case be above dew point to avoid water condensation)

Laser head cooling

Water (chiller available as an option) or air, depending on laser characteristics and power specifications

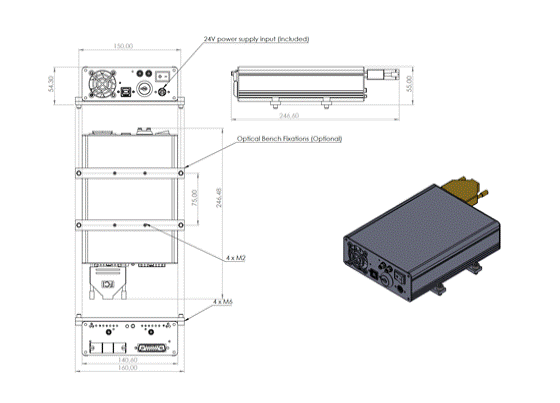

Drawings of one head system (water cooled version presented)

All dimensions are in mm



8
9

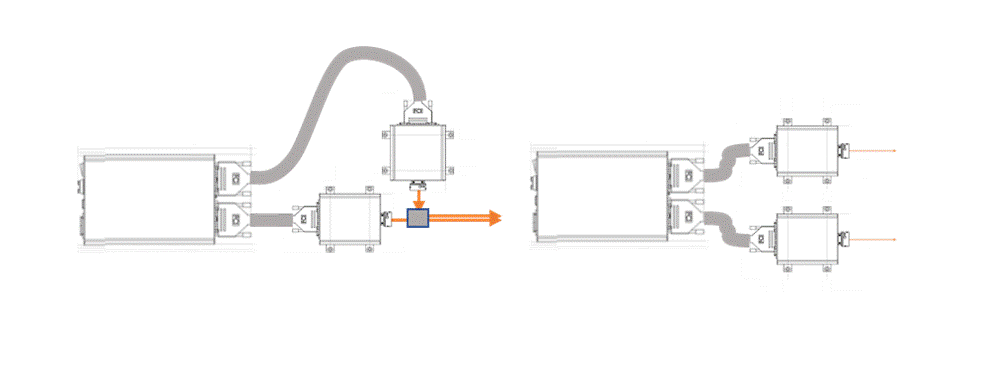

Here are presented some system architectures using two laser heads. One can use different wavelengths for application purpose or the same wavelength for total power increase.

3

For instance, by using polarization combination or far field configuration, the system can provide a maximum total average power up to 3 Watts depending on wavelength.

Typical Laser Characteristics

4
5

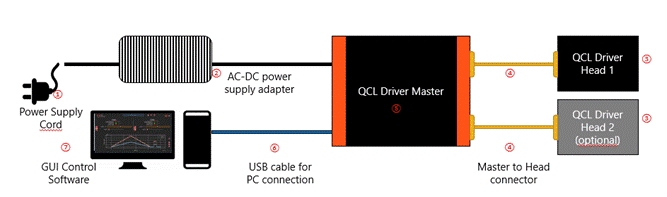

System description

Typical beam quality

6

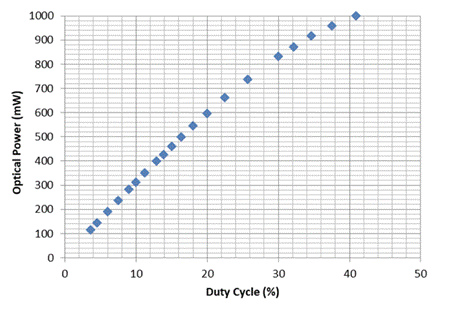

Typical average optical power of the laser as a function of the laser duty cycle
for a 1W laser @ 20˚C

Software interface

7

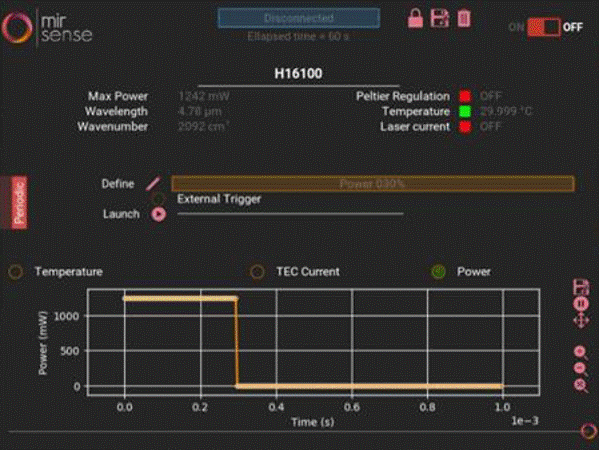

Software screenshot example

The PC software allows the user to select some modes with 3 pre-defines pulsewidth and maximum duty cycle over which the user can modulate with an internal or external TTL signal. The software has built-in safety features that safeguard the laser (for example, temperature management)

Related Datasheets



PowerMir with electronic board (POEM)





Quasi-CW QCL HHL with its driver



PowerMir turnkey solution is high power pulsed Quantum Cascade Laser based on proprietary technology, emitting in Mid-Infra-Red with its electronic driver. The system spec code is: PWXXXYYYYHTKZ, X.XX is the wavelength in micron, YYYY the power in mW, Z being 1 or 2, the number of laser heads, extension -W or -A specify water- or air-cooled solution). It offers plug and play solution in PC for quick and easy development in lab.

ITAR free MirSense technology exhibits outstanding performances in term of power and wall plug efficiency. This high-performance QCL assembly takes full advantage of MirSense’s state of the art technologies.

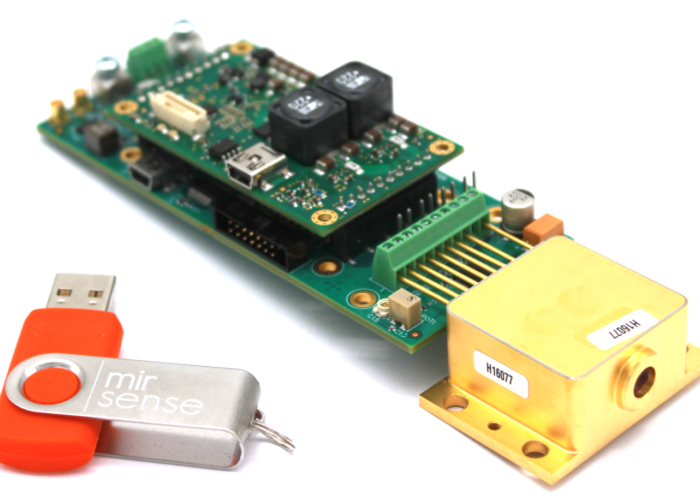

mirSense POEM system

Laser features

Maximum Average Optical Power

above 1 Watts at 4 microns and 4.6 microns, 1.5 W at 4.8µm and 300mW at 9µm

Mode of operation

Quasi-CW, high duty cycled pulsed

Central wavelength

4 µm or 4.6µm, or 4.8µm or 9.Xµm +/- 0.1 µm

Pulse frequency

> 500 kHz

Divergence

Horizontal < 8 mrad (typically 6mrad)

Vertical < 6 mrad (typically 4mrad)

Beam quality

TM00 Gaussian beam, M²<1.5

Output beam dimension (window output)

2 mm x 3 mm

Polarization

Linear vertically polarized

OEM driver features

Functionalities

Laser safety, Laser driver (ON/OFF), Laser temperature and TEC control, frequency modulation, external TTL

Physical interface

USB, RS485

Protocol

MODBUS

Input power

24V DC

Dimension

4.45cm x 11cm x 2.5cm

Weight

190 g (HHL 70g and PCB 120g)

Operational temp.

-20˚C to +30˚C @ base plate. This working environmental temperature must in any case be above dew point to avoid water condensation

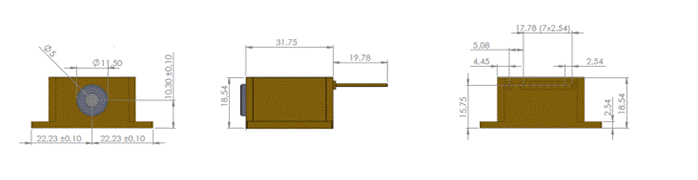

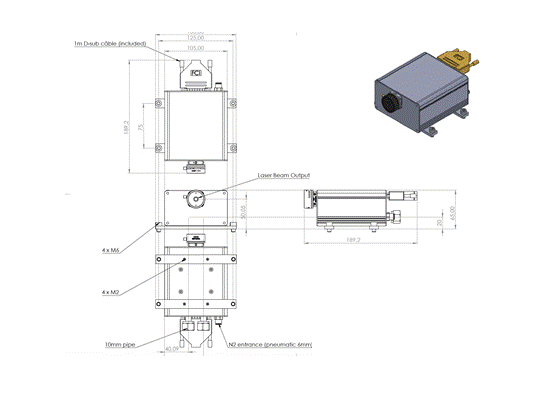

Drawings

All dimensions are in mm

10

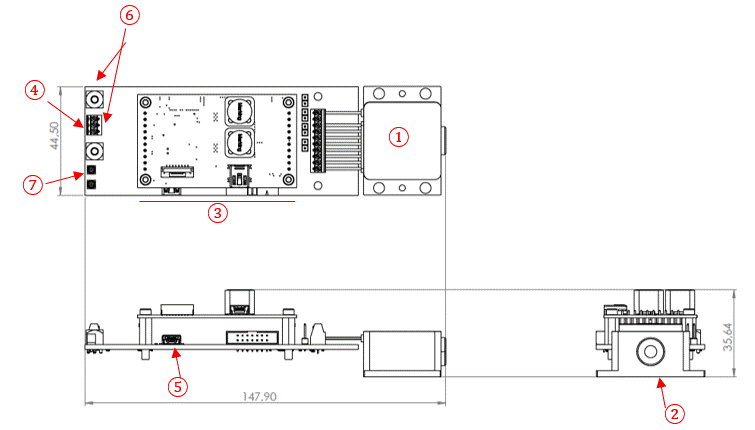

HHL-packaged QCL laser

Base plate

Stacked board for thermal management (it is factory-configured).

RS485 connector for MODBUS communication protocols

USB connector for connection to a PC with Windows software

Power connector (24V DC)

Trig-In connector (TTL external signal)

11
12

Typical characteristics of the laser

13

Typical beam quality

14

Typical average optical power of the laser as a function of the laser duty cycle
for 1W at +20˚C

Options

  • Customized packaging upon request
  • Embedded factory set custom operation modes including specific modulations or power levels that can be selected through PC software or modbus interface. For instance, if for development or test purposes, a specific modulation envelop is required, it can be done via the TTL or via a factory set stand alone mode on the FPGA that will be selected via either PC or modbus interface.

Related Datasheets



PowerMir





Quasi-CW QCL HHL



PowerMir HHL product line is high power pulsed Quantum Cascade Laser based on proprietary technology, emitting in Mid-Infra-Red. It provides maximum average power of minimum 1 Watt at 4 microns and 4.6µm, 1.5 W at 4.8µm and 300mW at 9.Xµm  (spec code: PWXXXYYYYHNA). The High Heat Load (HHL) package includes the high power laser mounted in a thermoelectric cooler and suitable optics to collimate the output of the laser.

ITAR free MirSense technology exhibits outstanding performances in term of power and wall plug efficiency. This high-performance QCL assembly takes full advantage of MirSense’s state of the art technologies.

HHL outlined

Optical features

Maximum Average Optical Power

above 1 Watts at 4 microns and 4.6 microns, 1.5 W at 4.8µm and 300mW at 9µm

Mode of operation

Quasi-CW, high duty cycled pulsed

Central wavelength

4 µm or 4.6µm, or 4.8µm or 9.Xµm +/- 0.1 µm

Pulse frequency

> 500 kHz

Divergence

Horizontal < 8 mrad (typically 6mrad)

Vertical < 6 mrad (typically 4mrad)

Beam quality

TM00 Gaussian beam, M²<1.5

Output beam dimension (typ.)

2 mm x 3 mm

Polarization

Linear vertically polarized

Mechanical and electrical features

Packaging

Hermitically sealed with nitrogen gas fill inside a High-Heat Load (HHL) package.

Wall-plug efficiency

5 to 10%

Built-in TEC included

Imax = 5.2A, Vmax = 15.7V

Laser current (typ.)

2 A

Laser voltage

10 to 20 V

Operational temperature

-20˚C to +30˚C @ base plate. This working environmental temperature must in any case be above dew point to avoid water condensation

Reliability

> 3500 hrs

Weight

70 grams

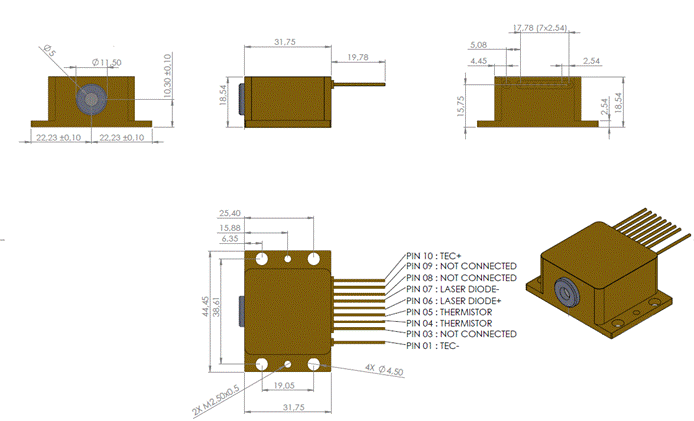

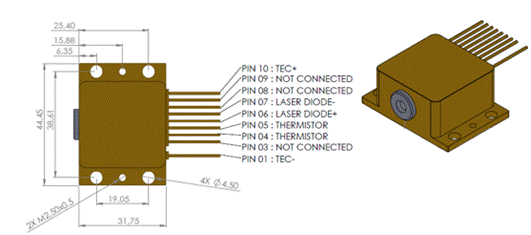

Drawings

All dimensions are in mm

15

Typical characteristics

16

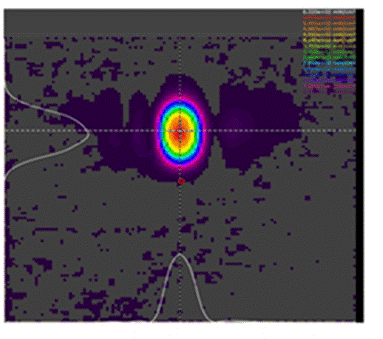

Typical beam quality

17

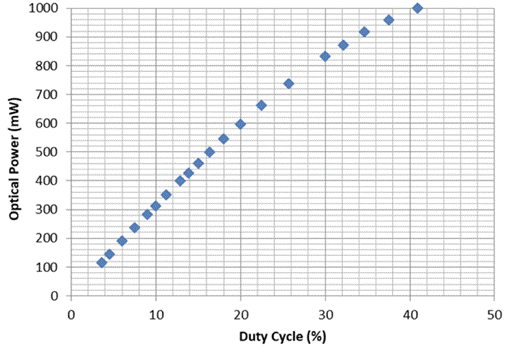

Typical average optical power of the laser as a function of the laser duty cycle
for 1W at +20˚C

Options

PCB board for laser control and turnkey system for plug- and play operation (Cf. turnkey system and POEM product lines)

Customized packaging upon request

We can provide for specific purposes chips on submounts for system integration. Those chips will have similar performances in term of power and wavelength as the HHL package products

Related Datasheets
