Turnkey Solution for Rapid Field and Lab Evaluation

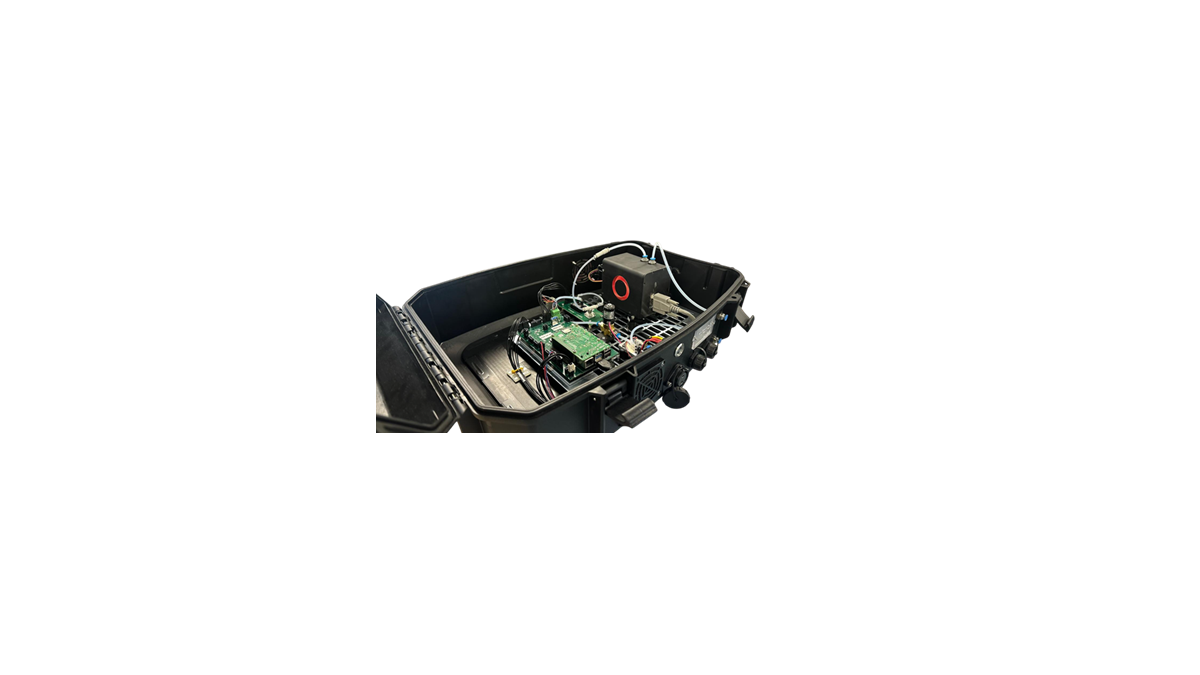

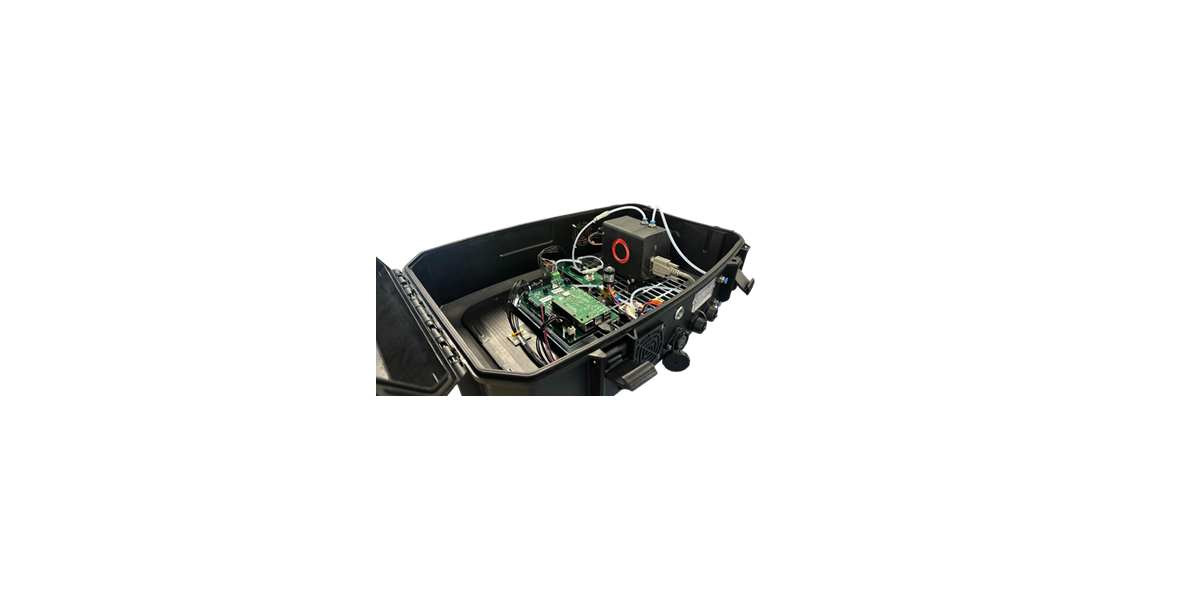

To enable fast, meaningful, and user-friendly evaluation of our QCL-based photoacoustic gas sensing technology, MirSense has developed a compact and versatile turnkey analyser integrating the MIRCHIP X OEM sensor…
This plug-and-play analyser allows users to experience the performance of the MIRCHIP X under real-world conditions — both in laboratory setups and rugged field environments.
Designed for flexibility, the Demo Kit simplifies installation and data collection, ensuring quick deployment and efficient testing in any environment.
A dedicated software interface allows users to easily visualize sensor data along with analyser parameters such as temperature, pressure, and flow, ensuring a complete and intuitive testing experience.

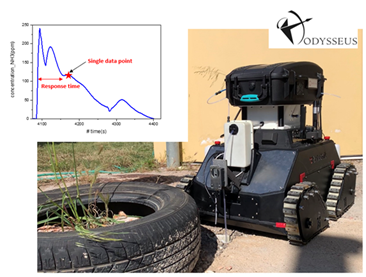

Ammonia measurements in water (credits: ODYSSEUS Project)

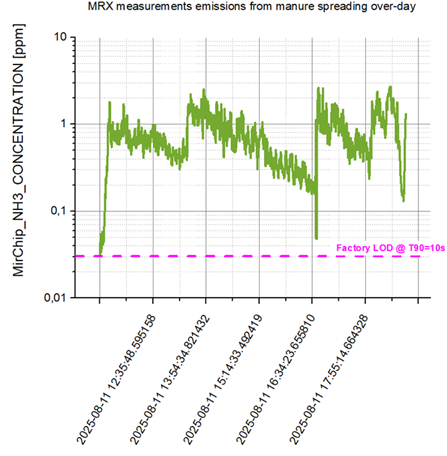

Ammonia daily measurements from manure spreading
TECHNICAL DATA
| Parameter | Category | Value |
| Dimensions | Serial | 540mm x 400mm x 220mm |
| Weight | Serial* | <6kgs |
| Ambient Temperature | Serial | 0-40°C |
| Power Supply | Serial | 14/26V |
| Power Consumption | Serial | <60W* |
| Connection | Serial | Wifi |
| MultiGas Detection | Option | NH3, CO2, CH4, N2O, H2O with MIRCHIP X performances |
| Batteries | Option | 288Wh LiFePo |
* can be higher in multigas configuration
Key Features:
- Turnkey analyser – ready to operate out of the box
- Compact and rugged design, suitable for lab and field use
- User-friendly software for real-time data visualization
- Low power consumption (<30 W)
- Lightweight design (<6 kg)
- Fast warm-up time (<15 min)
- 4 simultaneous detection (option)
Typical applications :
- On-site validation and field trials (agriculture, industry, process monitoring…)
- Laboratory performance evaluation and benchmarking
- OEM feasibility and integration testing
- Multi-gas detection and R&D demonstrations
